4.3 inch Price E-tags
As a bridge of new retail, the role of Price E-tags is to dynamically display commodity prices, commodity names, promotional information, etc. on supermarket shelves.
Price E-tags also supports remote control, and the headquarters can conduct unified price management for the commodities of its chain branches through the network.
Price E-tags integrates the functions of commodity price changes, event promotions, inventory counts, picking reminders, out-of-stock reminders, opening online stores. It will be a new trend for smart retail solutions.
Product Show for 4.3 inch Price E-tags
Specifications for 4.3 inch Price E-tags
|
Model |
HLET0430-4C |
|||
|
Basic parameters |
Outline |
129.5mm(H) ×42.3mm(V)×12.28mm(D) |
||
|
Color |
White |
|||
|
Weight |
56g |
|||
|
Color Display |
Black/White/Red |
|||
|
Display Size |
4.3 inch |
|||
|
Display Resolution |
522(H)×152(V) |
|||
|
DPI |
125 |
|||
|
Active Area |
105.44mm(H)×30.7mm(V) |
|||
|
View Angle |
>170° |
|||
|
Battery |
CR2450*3 |
|||
|
Battery Life |
Refresh 4 times a day, no less than 5 years |
|||
|
Operating Temperature |
0~40℃ |
|||
|
Storage Temperature |
0~40℃ |
|||
|
Operating Humidity |
45%~70%RH |
|||
|
Waterproof Grade |
IP65 |
|||
|
Communication parameters |
Communication Frequency |
2.4G |
||
|
Communication Protocol |
Private |
|||
|
Communication Mode |
AP |
|||
|
Communication Distance |
Within 30m (open distance: 50m) |
|||
|
Functional parameters |
Data Display |
Any language, text, image, symbol and other information display | ||
|
Temperature Detection |
Support temperature sampling function, which can be read by the system | |||
|
Electric Quantity Detection |
Support the power sampling function, which can be read by the system | |||
|
LED Lights |
Red, Green and Blue , 7 colors can be displayed |
|||
|
Cache Page |
8 pages |
|||
Solution for Price E-tags
Customer Case for Price E-tags
Price E-tags are widely used in retail fields, such as chain convenience stores, fresh food stores, 3C electronic stores, clothing stores, furniture stores, pharmacies, mother and baby stores and so on.
FAQ (Frequently Asked Questions) for Price E-tags
1. What are the advantages and features of Price E-tags?
• Higher efficiency
Price E-tags adopts 2.4G communication technology, which has fast transmission rate, strong anti-interference ability and long transmission distance, etc.
• Lower power consumption
Price E-tags uses high-resolution, high-contrast E-paper, which is with almost no power loss in static operation, extending battery life.
• Multi-terminal management
PC terminal and mobile terminal can flexibly manage the background system at the same time, the operation is timely, flexible and convenient.
• Simple price change
The price change system is very simple and easy to operate, and daily price change maintenance can be performed using csv.
• Data security
Each Price E-tags has a unique ID number, a unique data security encryption system, and encryption processing for connection and transmission to ensure data security.
2. What contents can the screen of Price E-tags display?
The screen of Price E-tags is a rewritable e-ink screen. You can customize the screen display content through the background management software. In addition to displaying commodity prices, it can also display text, pictures, barcodes, QR codes, any symbols and so on. Price E-tags also supports display in any languages, such as English, French, Japanese, etc.
3. What are the installation methods of Price E-tags?
Price E-tags have a variety of installation methods. According to the usage scene, Price E-tags can be installed by slideways, clips, pole into ice, T-shape Hanger, display stand, etc. The disassembly and assembly are very convenient.
4. Are Price E-tags expensive?
Cost is the most concerned issue for retailers. Although the short-term investment of using Price E-tags may seem huge, it is a one-time investment. The convenient operation minimizes labor costs, and basically no further investment is required in the later stage. In the long run, the overall cost is low.
While the seemingly low-cost paper price tag requires a lot of labor and paper, the cost gradually rises with time, the hidden cost is very huge, and the labor cost will be higher and higher in the future!
5. What is the coverage area of an ESL base station? What is the transmission technology?
An ESL base station has 20+ meters coverage area in radius. Large areas require more base stations. The transmission technology is the latest 2.4G.
6. What are composed in the whole Price E-tags system?
A complete set of Price E-tags system consists of five parts: electronic shelf labels, base station, ESL management software, smart handheld PDA and installation accessories.
• Electronic shelf labels: 1.54”, 2.13”, 2.13” for frozen food, 2.66”, 2.9”, 3.5”, 4.2”, 4.2” waterproof version, 4.3”, 5.8”, 7.2”, 12.5”. White-black-red E-ink screen display color, battery replaceable.
• Base station: The communication “bridge” between electronic shelf labels and your server.
• ESL management software: Managing the Price E-tags system, adjust the price locally or remotely.
• Smart handheld PDA: Efficiently bind the commodities and electronic shelf labels.
• Installation accessories: For mounting electronic shelf labels in different places.

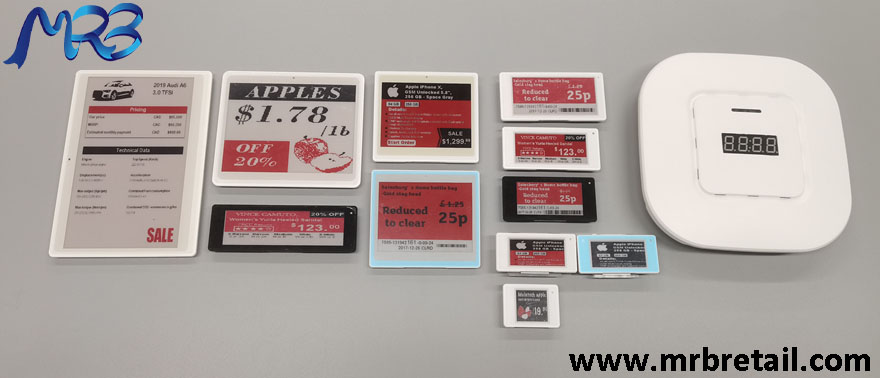

Please click the image below for all the sizes of Price E-tags.
