Lowest Price for 3d Counting Camera - MRB head counting camera HPC010 – MRB Detail:

Many of our head counting camera are patented products. In order to avoid plagiarism, we did not put too much content on the website. You can contact our sales staff to send you more detailed information about our head counting cameras.

The HPC010 head counting camera uses a self-developed dual-camera depth algorithm model to dynamically detect the cross-section, height and movement trajectory of the target, thereby obtaining high-precision real-time passenger flow data, and a built-in Huawei dedicated video hardware acceleration engine high-performance communication media processor, Accurate recognition of multiple targets, automatic filtering of interference at any time.

MRB’s head counting camera can be upgraded to the online version, which is specially suitable for the chain store format. After the upgrade, managers can see the real-time passenger flow of various chain stores across the country at the company headquarters. At home, it is very suitable for managers to perform data statistics. The head counting camera has a small appearance and is extremely convenient to install. According to the installation instructions, ordinary shop assistants can install it without professional installation, saving installation costs. In addition, the powerful software of head counting camera Function, intelligently distinguish the direction of entry and exit of people, separate counting and statistics of entry and exit, the number of people in and out is clear at a glance, and the data is sent to a dedicated receiver through wireless transmission to form data for the transmission period. The head counting camera avoids all wiring including power lines and signal lines. Long-distance encrypted wireless transmission, ultra-stable, feature-rich passenger flow counting software, which can provide graphical display for various functions such as data query, analysis, calculation, comparison and export.

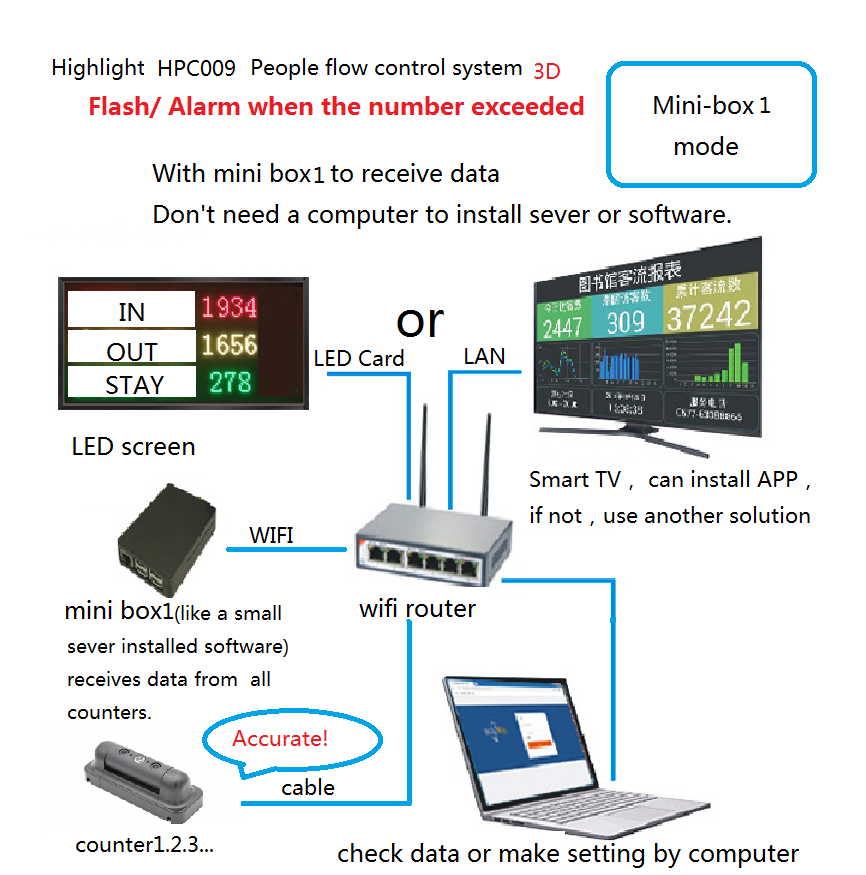

counting-camera-03

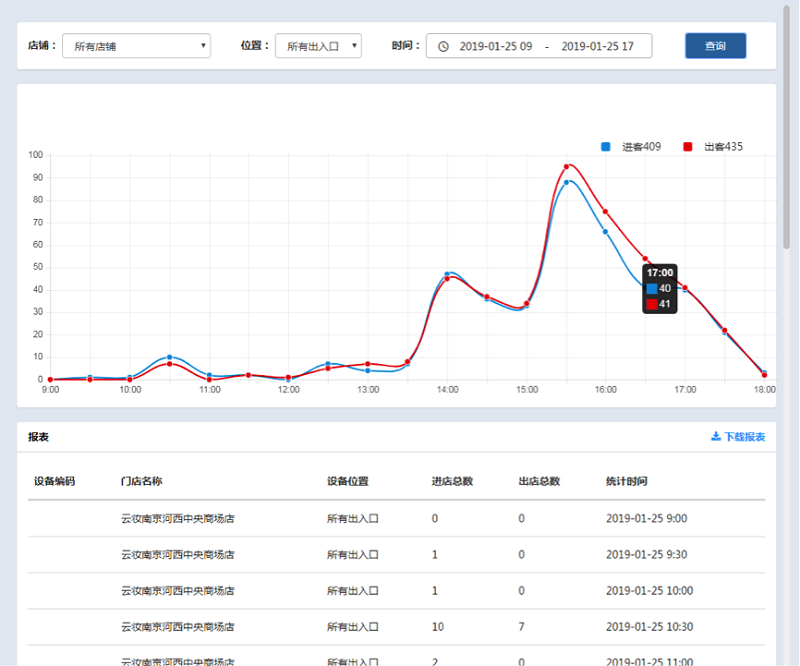

counting-camera-02

MRB’s head counting camera has been applied to tens of thousands of stores in various industry chain stores across the country, sales are far ahead, and product stability has been fully verified. 24-hour uninterrupted passenger flow statistics and accurate data analysis allow various stores to more reasonably control through passenger flow statistics Shopping mall layout, better determine rent and control the direction of passenger flow on each floor.

Project Equipment Parameters Performance Indicators
Power supply DC12~36V Voltage fluctuations of 15% allowed
Power consumption 3.6W Average power consumption
System Operating Language Chinese/English/Spanish
Operation interface C/S operation configuration mode
Accuracy rate 95%
External interface RS485 interface Custom baud rate and ID, multi machine network supported
RS232 interface Custom baud rate
RJ45 Device debugging, http protocol transmission
Video output PAL, NTSC system
Operating temperature -35℃~70℃ In well ventilated environment
Storage temperature -40~85℃ In well ventilated environment
Average failure-free time MTBF More than 5,000 hours
Installation height 1.9~2.2m
Environment illuminance 0.001 lux (dark environment) ~ 100klux (outdoor direct sunlight), no fill-in light needed, accuracy rate not affected by environment illumination.
Earthquake resistance level Meets national standard QC/T 413 “Basic technical conditions for automotive electrical equipment”
Electromagnetic compatibility Meets national standard QC/T 413 “Basic technical conditions for automotive electrical equipment”
Radiation protection Meets EN 62471: 2008 “Photo-biological safety of lamps and lamp systems”
Degree of protection Meets IP43 (completely dust-proof, anti-waterjet intrusion)
Heat dissipation Passive structural heat dissipation
Size 178mm*65mm*58mm

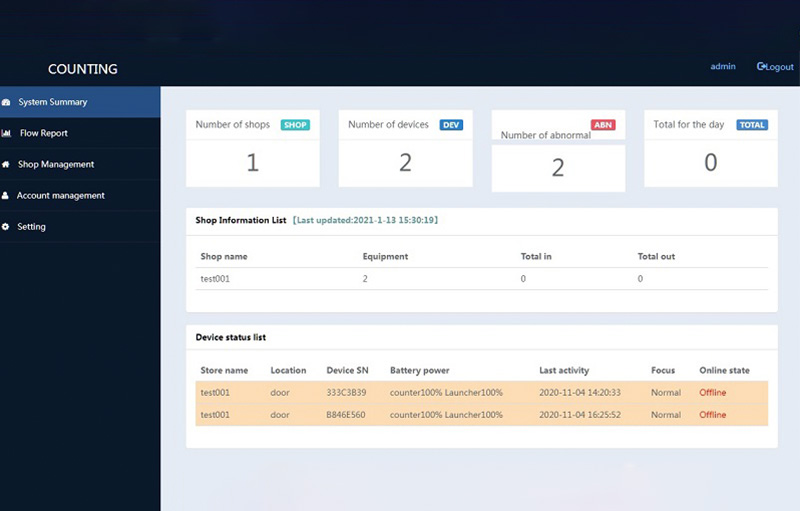

head-counting-camera-03

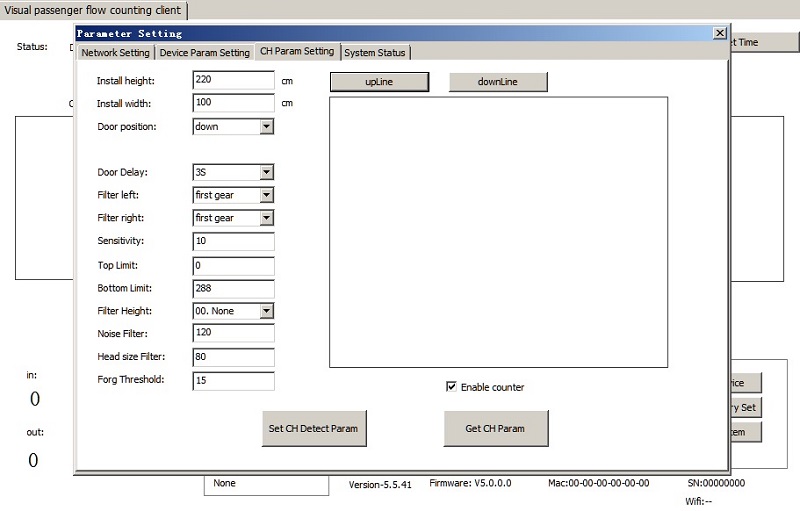

head-counting-camera-04

We have many types of IR, 2D, 3D, AI head counting camera, there is always one that will suit you, please contact us, we will recommend the most suitable head counting camera for you within 24 hours.

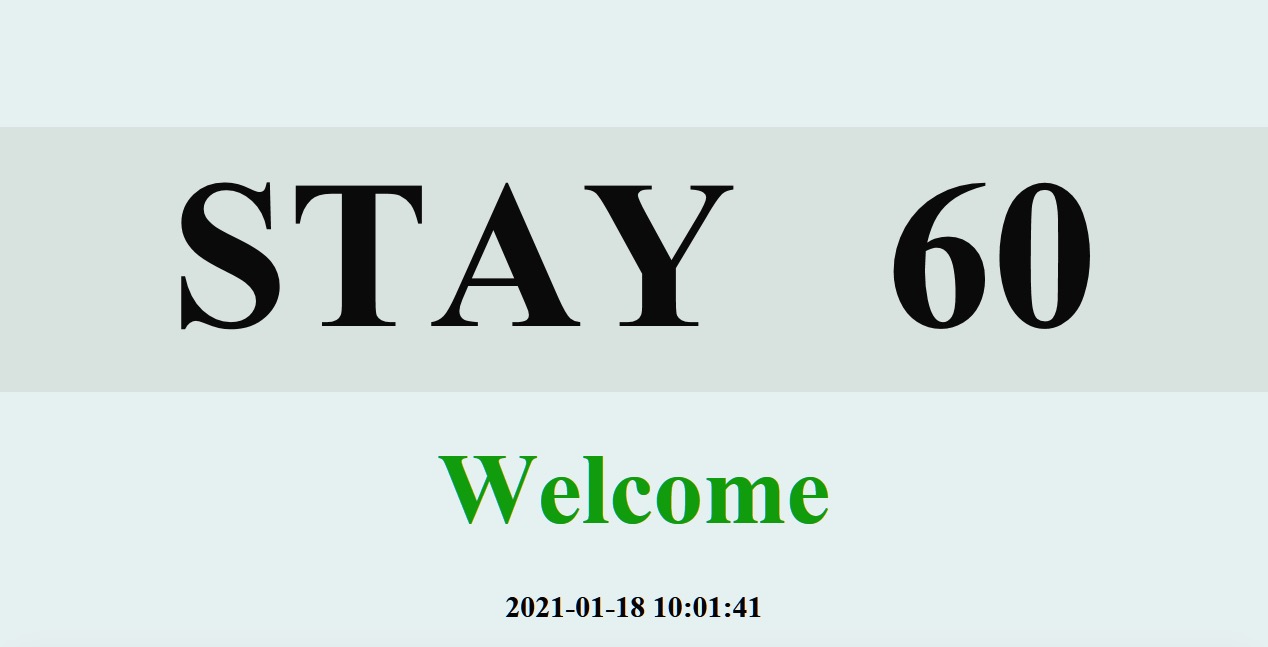

head-counting-camera-02

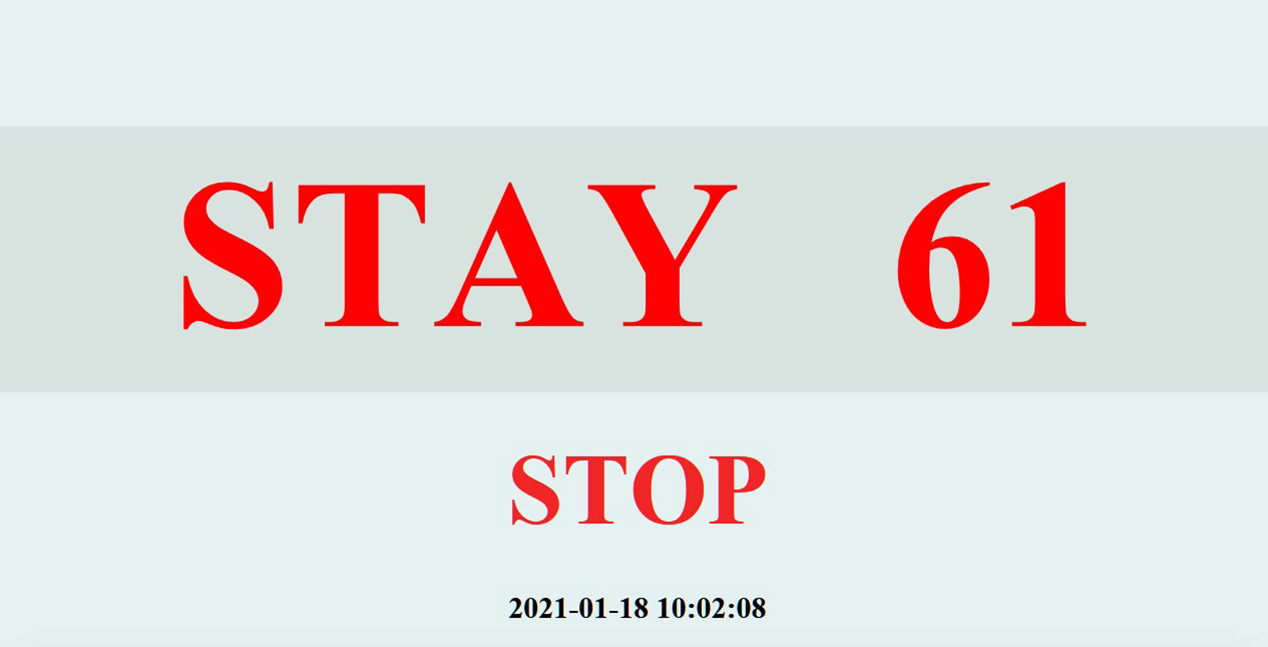

counting-camera1

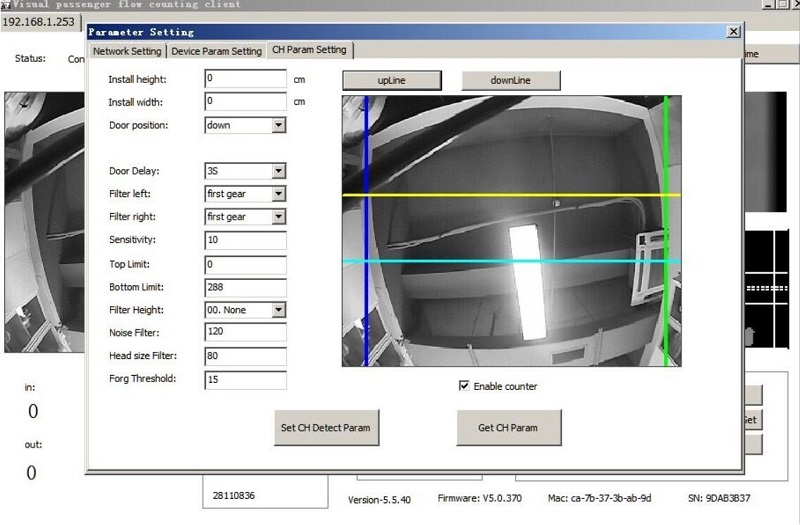

head-counting-camera-01

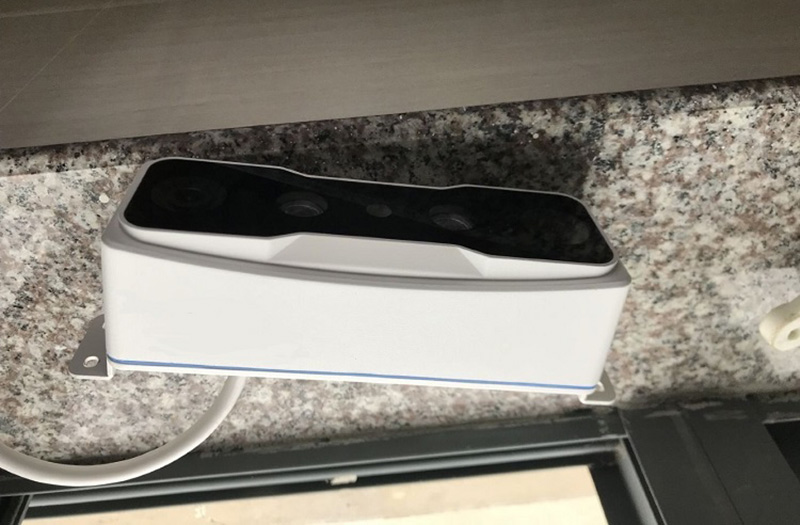

counting-camera01


Product detail pictures:

Lowest Price for 3d Counting Camera - MRB head counting camera HPC010 – MRB detail pictures
