What Do the DC Indicator Lights Mean for HPC005 Infrared People Counter?

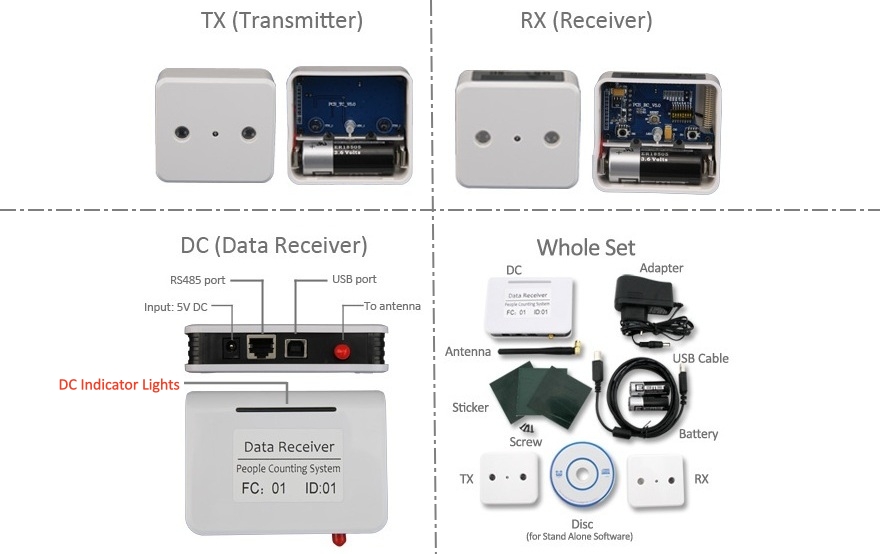

The DC indicator lights on the MRB HPC005 wireless infrared people counter are straightforward visual tools that show power status, normal operation, signal reception, and system faults in real time. Designed for retail chains, libraries, transit hubs, offices, and public venues, the HPC005 infrared people counter combines compact size, long battery life, anti-light interference, encrypted 433MHz RF communication, and plug‑and‑play wireless installation. Understanding these four indicator lights from left to right helps users maintain stable counting, quickly troubleshoot issues, and maximize the performance of this reliable people counting solution.



Table of Contents

1. First Green Light (Solid): Power Indicator Confirms Stable Power Supply

2. Second Green Light (Blinking): Operation Indicator Shows Normal Function

3. Third Yellow Light (Solid): Signal Alert for Lost Communication

4. Fourth Red Light (Solid): Fault Alert Requires DC Restart

5. Conclusion

6. About the Author



1. First Green Light (Solid): Power Indicator Confirms Stable Power Supply

The first green indicator is the power status light. A steady green glow means the DC unit is properly powered via adapter or USB connection, with consistent voltage for processing and relaying counting data. This light confirms basic readiness before sensor pairing and aligns with the HPC005 infrared people counting system’s low-power design, where sensors run up to 1–5 years on AA or lithium batteries. If this light is off, check the power adapter, cable, or port to restore supply.



2. Second Green Light (Blinking): Operation Indicator Shows Normal Function

The second green light blinks continuously during regular operation, signaling that the DC unit is working properly, receiving infrared signals, and processing footfall data. This blinking rhythm reflects the HPC005 IR beams infrared people counter device’s stable performance: bidirectional counting, glass-penetrating detection, anti-light interference, and encrypted data transmission. A steady or non‑blinking green light suggests abnormal operation; verify sensor alignment, clear line of sight, and ensure detection width stays within recommended limits.



3. Third Yellow Light (Solid): Signal Alert for Lost Communication

The yellow indicator acts as a signal warning light. When lit solid yellow, the DC unit cannot receive valid signals from the infrared sensors. Common causes include distance exceeding 40 meters, physical obstructions, misalignment, or low sensor battery. This alert ties to the HPC005 electronic people counter sensors’s long‑range wireless capability, reminding users to maintain clear installation conditions for reliable counting across wide entrances.



4. Fourth Red Light (Solid): Fault Alert Requires DC Restart

The fourth red light is the system fault indicator. A solid red glow means the DC unit has encountered an internal error, such as data processing failure, connection instability, or temporary malfunction. The recommended fix is to restart the DC unit to reset the system. This quick self‑recovery supports the HPC005 infrared door counter’s low‑maintenance design, minimizing downtime for stores and high‑traffic locations.



5. Conclusion

The DC indicator lights of the MRB HPC005 digital human traffic counter are simple yet essential for daily operation and quick troubleshooting. By interpreting power, operation, signal, and fault statuses at a glance, users can ensure accurate counting, stable wireless communication, and consistent performance. With features including compact size, long battery life, anti-interference technology, encrypted RF transmission, LCD display, full API support, and occupancy control functionality, the HPC005 infrared customer counting system delivers dependable footfall analytics for single stores and multi‑branch chains alike. Mastering these indicator lights helps users fully unlock the value of the MRB HPC005 wireless visitor counter, turning real-time traffic data into actionable insights for better operational efficiency and customer experience.
